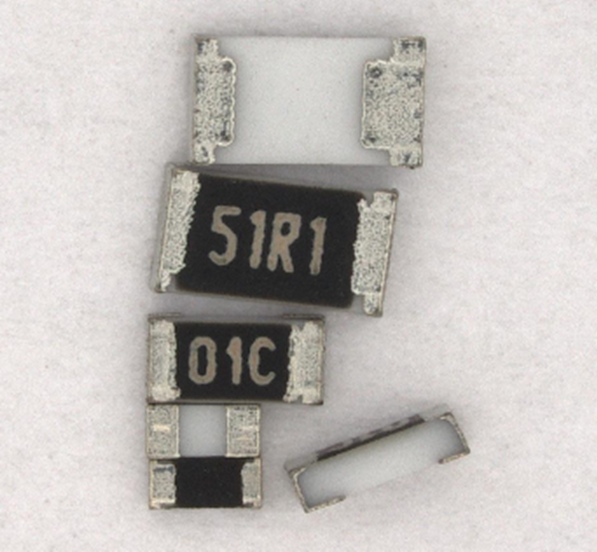

Description
Our TF Series offers excellent performance and tolerance in TCR, current noise, and linearity for high frequency circuit applications and other applications requiring precision and stability.Features
RoHS compliant, Lead free
Electrical Characteristics
TCR
25ppm, 50ppmResistance Range
1 Ohm - 3M OhmTolerance
0.05%, 0.1%, 0.25%, 0.5%, 1%Power Ratings
1/32W - 3/4WMechanical Characteristics
Construction
Thin FilmCase Sizes
0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512Related Series
